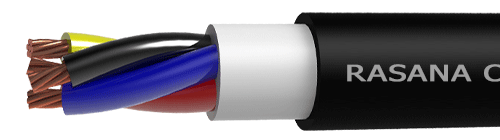

Multi Core, PVC Insulated, PVC Sheathed Cables

( H05VV - R , H05VV - U , NYM )

Layers Construction

  • Cu / PVC / PVC

PVC insulated, PVC sheathed cables for wiring and industrial purposes

Cable Structure
Technical Data
Application
Properties

Cable Structure

Conductor type and class:

Copper conductor according to IEC 60228 ( ISIRI 3084 )
Class 1 ( solid ) for conductors up to and including 16 mm²
Class 2 ( stranded ) for all sizes of conductors.

PVC core insulation:

Compound type of PVC / C

Core insulation colors:

According to IEC 60227 – 1 ( ISIRI 607 – 1 )

PVC outer sheath:

Compound type of PVC / ST4

Sheath color:

Black

Technical Data

Temperature range:

-30 ℃ to +70 ℃

Nominal Voltage Uo / U:

300 / 500 V

Reference Standard:

ISIRI 607 – 4
IEC 60227 – 4

Wire code:

ISIRI ( 607 ) 10
60227IEC 10
H05VV – R
H05VV – U
NYM

Application

These types of cables are used in, on and under plaster in dry, wet and damp rooms as well as brick work or concrete, with the exception of direct laying of reinforce, vibrated or compressed concrete. Outdoor usage, only with protection against direct sunlight, is permitted.

Properties

Approx. Weight
( kg / km )		Max. Conductors
Resistance at 20˚C
( Ω / km )		Average
Outer Diameter
( mm )		Nominal Sheath
Thickness
( mm )		Approx. Filler
Thickness
( mm )		Nominal Insulation
Thickness
( mm )		Class of
Conductors		No. & Nominal Cross
Section of Conductors
( mm2 )
Max.Min.
11412.1107.61.20.40.712×1.5
12312.110.57.81.20.40.722×1.5
1567.4111.58.61.20.40.812×2. 5
1687.411291.20.40.822×2. 5
2014.6112.59.61.20.40.812×4
2194.6113101.20.40.822×4
2613.0813.510.51.20.40.812×6
2823.0814111.20.40.822×6
4281.8316.5131.40.6112×10
4591.8317.513.51.40.6122×10
6321.152015.51.40.6122×16
9570.7272418.51.40.81.222×25
12760.52427.5211.611.222×35
13312.110.581.20.40.713×1.5
14312.1118.21.20.40.723×1.5
1867.41129.21.20.40.813×2.5
1997.4112.59.41.20.40.8 23×2.5
454.6113101.20.40.813×4
2654.6113.510.51.20.40.823×4
3363.0814.511.51.40.40.813×6
3593.0815.5121.40.40.823×6
5321.8317.5141.40.6113×10
5641.831914.51.40.6123×10
8111.1521.516.51.40.8123×16
12270.7272620.51.60.81.223×25
16140.52429221.611.223×35
15912.111.58.61.20.40.714×1.5
17012.11291.20.40.724×1.5
2247.4113101.20.40.814×2.5
2407.4113.5101.20.40.824×2.5
3104.6114.511.51.40.40.814×4
3354.6115121.40.40.824×4
4263.081612.51.40.60.814×6
4543.0817131.40.60.824×6
6561.831915.51.40.6114×10
6931.8320.5161.40.6124×10
10021.1523.5181.40.8124×16
15500.72728.522.51.611.224×25
20110.5243224.51.611.224×35
18512.1129.41.20.40.715×1.5
19912.112.59.81.20.40.725×1.5
2647.4114111.20.40.815×2.5
2827.4114.5111.20.40.825×2.5
3824.611612.51.40.60.815×4
4114.6117131.40.60.825×4
5063.0817.513.51.40.60.815×6
5393.0818.514.51.40.60.825×6
7841.8321171.40.6115×10
8271.832217.51.40.6125×10
12221.152620.51.60.8125×16
18590.72731.524.51.611.225×25
24540.52435271.61.21.225×35
