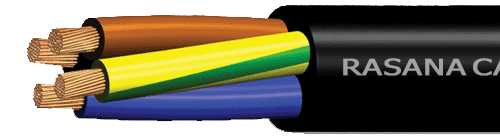

Ordinary Multi Core, PVC Insulated, PVC Sheathed, Flexible Cables
( H05VVH2 - F , H05VV - F , NYMHY )
Layers Construction
- Cu / PVC / PVC
Ordinary PVC insulated, PVC sheathed, flexible cords and cables.
Cable Structure
Conductor type and class:
Flexible copper conductor according to IEC 60228 ( ISIRI 3084 ), class 5
PVC core insulation:
Compound type of PVC / D
Core insulation colors:
According to IEC 60227 – 1 ( ISIRI 607 – 1 )
PVC outer sheath:
Compound type of PVC / ST5
Sheath color:
Black, white or as per customer request.
Technical Data
Temperature range:
-30 °C to +70 °C
Nominal Voltage Uo / U:
300 / 500 V
Reference Standard:
ISIRI 607 – 5
IEC 60227 – 5
Cable Code:
ISIRI ( 607 ) 53
60227 IEC 53
H05VV – F
NYMHY
Application
These types of cables are used in applications such as extensions and connecting cables for electrical devices, appliances and machinery where plugs must be permanently connected to the corresponding cables. Any direct cable contact with hot parts of cooking and heating appliances and also any other heat influences is prohibited.
Properties
| Approx. Weight ( kg / km ) | Max. Conductors Resistance at 20˚C ( Ω / km ) | Average Outer Diameter ( mm ) | Nominal Sheath Thickness ( mm ) | Nominal Insulation Thickness ( mm ) | No. & Nominal Cross Section of Conductors ( mm2 ) | |
| Max. | Min. | |||||
| 54 | 26 | 7.2 | 5.7 | 0.8 | 0.6 | 2×0.75 |
| 33 | 26 | 4.5 ×7.2 | 3.7×6 | 0.8 | 0.6 | 2×0.75 |
| 62 | 19.5 | 7.5 | 5.9 | 0.8 | 0.6 | 2×1 |
| 62 | 19.5 | 4.7×7.5 | 3.9×6.2 | 0.8 | 0.6 | 2×1 |
| 83 | 13.3 | 8.6 | 6.8 | 0.8 | 0.7 | 2×1.5 |
| 18 | 7.98 | 10.6 | 8.4 | 1 | 0.8 | 2×2.5 |
| 64 | 26 | 7.6 | 6 | 0.8 | 0.6 | 3×0.75 |
| 74 | 19.5 | 8 | 6.3 | 0.8 | 0.6 | 3×1 |
| 104 | 13.3 | 9.4 | 7.4 | 0.9 | 0.7 | 3×1.5 |
| 160 | 7.98 | 11.4 | 9.2 | 1.1 | 0.8 | 3×2.5 |
| 77 | 26 | 8.3 | 6.6 | 0.8 | 0.6 | 4×0.75 |
| 93 | 19.5 | 9 | 7.1 | 0.9 | 0.6 | 4×1 |
| 131 | 13.3 | 10.5 | 8.4 | 1 | 0.7 | 4×1.5 |
| 195 | 7.98 | 12.5 | 10.1 | 1.1 | 0.8 | 4×2.5 |
| 95 | 26 | 9.3 | 7.4 | 0.9 | 0.6 | 5×0.75 |
| 110 | 19.5 | 9.8 | 7.8 | 0.9 | 0.6 | 5×1 |
| 159 | 13.3 | 11.6 | 9.3 | 1.1 | 0.7 | 5×1.5 |
| 237 | 7.98 | 13.9 | 11.2 | 1.2 | 0.8 | 5×2.5 |
| 175 | 4.95 | 12.6 | 9.7 | 1.1 | 0.8 | * 2×4 |
| 221 | 4.95 | 12.8 | 0.3 | 1.1 | 0.8 | * 3×4 |
| 272 | 4.95 | 14.3 | 11.5 | 1.2 | 0.8 | * 4×4 |
| 337 | 4.95 | 15.9 | 12.8 | 1.3 | 0.8 | * 5×4 |
* According to HD CENELEC 21.5 standard
